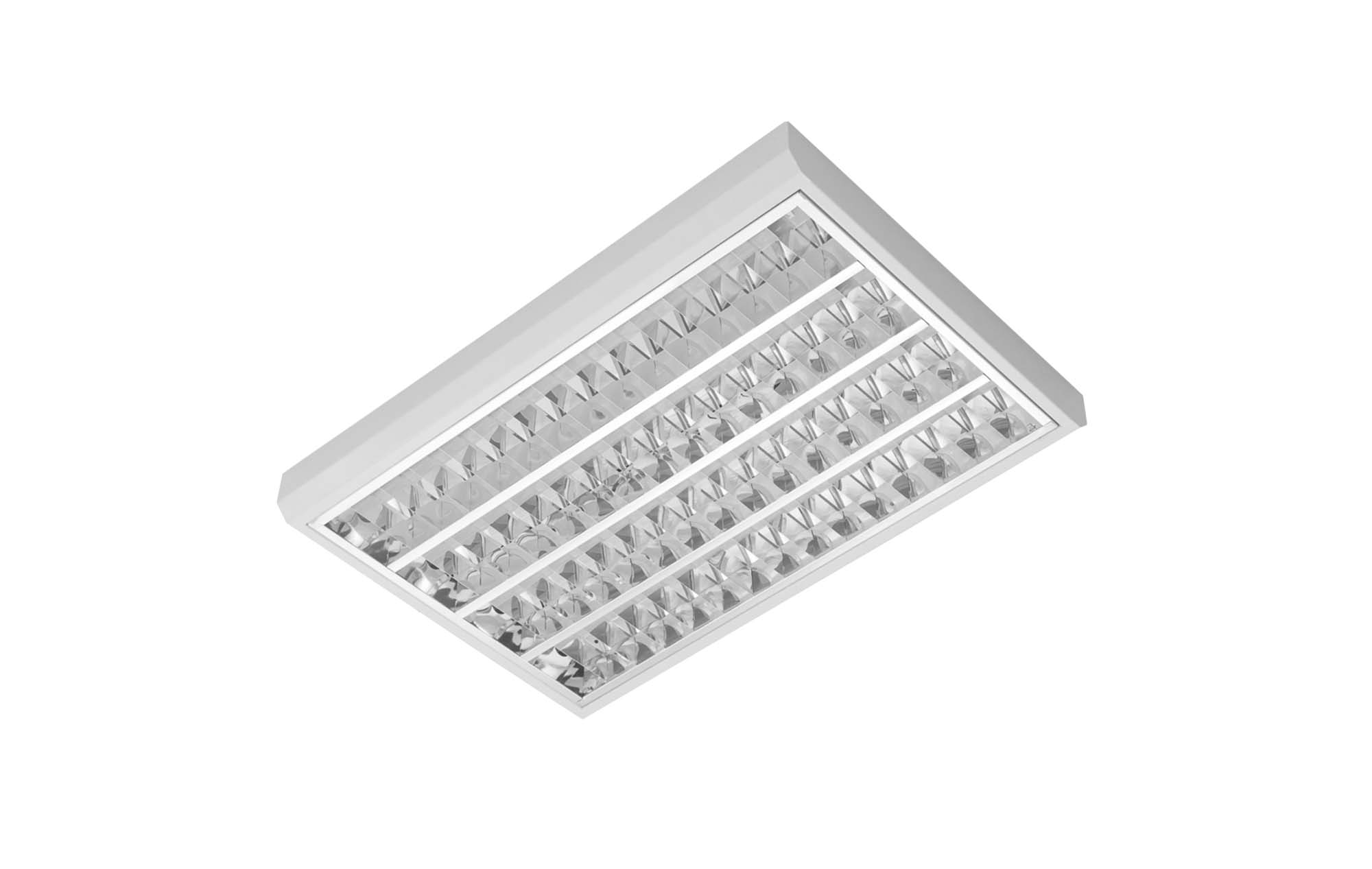

LLX-MAT-DP 4161
Installation:
Mounted against the ceiling. Optionally available with a pendant set.
Design:
Matte white RAL9003 powder-coated sheet steel housing.
Optical:
Matte aluminum double parabolic reflector, fixed in the housing by hidden springs.
LED Type: SMD
- 2700k/ 5700k/ 6500k
- Casambi
- CRI90
- Dimmable 1-10V
- Dimmable DALI
- High Gloss Reflector
- Emergency Lighting Package
- Pendant set
- RAL9006
- Tunable White [HCL]
IP20
UGR <19
130 lm/w
RAL9003
L90B50 50.000h
Description
LLX-LED MAT-DP 4161 3000 830 ND
lm
3400
W
27.000
lm/W
126
K
3000.000|3000.000
L
611.000
B
410.000
H
52.000
Description
LLX-MAT-DP 4161 3000 830 ND NU
lm
3400
W
27.000
lm/W
126
K
3000.000|3000.000
L
611.000
B
410.000
H
52.000
Description
LLX-LED MAT-DP 4161 3000 840 ND
lm
3400
W
27.000
lm/W
126
K
4000.000|4000.000
L
611.000
B
410.000
H
52.000
Description
LLX-LED MAT-DP 4161 4000 830 ND
lm
4350
W
37.000
lm/W
118
K
3000.000|3000.000
L
611.000
B
410.000
H
52.000
Description
LLX-LED MAT-DP 4161 4000 840 ND
lm
4350
W
37.000
lm/W
118
K
4000.000|4000.000
L
611.000
B
410.000
H
52.000
| Article | Description | lm | W | lm/W | K | L | B | H | |
| 8717696114677 | LLX-LED MAT-DP 4161 3000 830 ND | 3400 | 27.000 | 126 | 3000.000|3000.000 | 611.000 | 410.000 | 52.000 | |
Description LLX-LED MAT-DP 4161 3000 830 ND lm 3400 W 27.000 lm/W 126 K 3000.000|3000.000 L 611.000 B 410.000 H 52.000 | |||||||||
| 8717696184120 | LLX-MAT-DP 4161 3000 830 ND NU | 3400 | 27.000 | 126 | 3000.000|3000.000 | 611.000 | 410.000 | 52.000 | |
Description LLX-MAT-DP 4161 3000 830 ND NU lm 3400 W 27.000 lm/W 126 K 3000.000|3000.000 L 611.000 B 410.000 H 52.000 | |||||||||
| 8717696114684 | LLX-LED MAT-DP 4161 3000 840 ND | 3400 | 27.000 | 126 | 4000.000|4000.000 | 611.000 | 410.000 | 52.000 | |
Description LLX-LED MAT-DP 4161 3000 840 ND lm 3400 W 27.000 lm/W 126 K 4000.000|4000.000 L 611.000 B 410.000 H 52.000 | |||||||||
| 8717696114660 | LLX-LED MAT-DP 4161 4000 830 ND | 4350 | 37.000 | 118 | 3000.000|3000.000 | 611.000 | 410.000 | 52.000 | |
Description LLX-LED MAT-DP 4161 4000 830 ND lm 4350 W 37.000 lm/W 118 K 3000.000|3000.000 L 611.000 B 410.000 H 52.000 | |||||||||
| 8717696114653 | LLX-LED MAT-DP 4161 4000 840 ND | 4350 | 37.000 | 118 | 4000.000|4000.000 | 611.000 | 410.000 | 52.000 | |
Description LLX-LED MAT-DP 4161 4000 840 ND lm 4350 W 37.000 lm/W 118 K 4000.000|4000.000 L 611.000 B 410.000 H 52.000 | |||||||||
