BL-Sky 6060
Installation:
Installed in suspended system ceilings with exposed profiles module size 600mm or drywall ceilings.
Design:
Matte white RAL9016 powder-coated sheet steel housing.
Optical:
Depending on the image, the luminaire has a light output of 30 to 50%.
LED type: SMD
- Dimmable 1-10V
- Dimmable DALI
- GST18/3
- Emergency Lighting Package
IP54
UGR <21
128 lm/w
L80B50 80h
Description
BL-Sky LED 6060 3000lm Type 01 Cloudy 6 Panel
lm
3100
W
23.000
lm/W
134
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description
BL-Sky LED 6060 4000lm Type 01 Cloudy 6 Panel
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description
BL-Sky LED 6060 4000lm Type 01 Cloudy 6 Panel DALI
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description

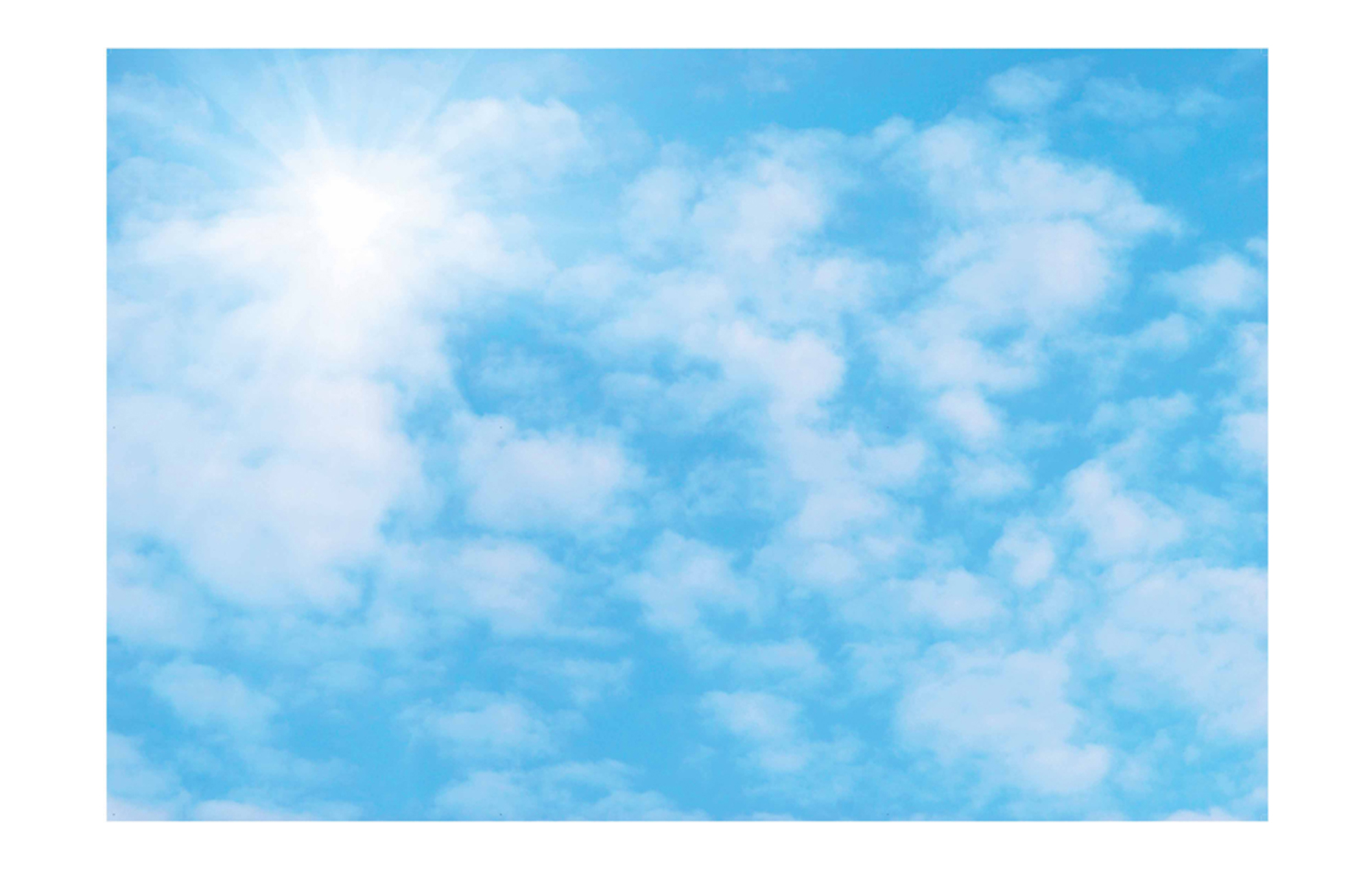

BL-Sky LED 6060 4000lm Type 02 Sunlight 6 Panel DALI
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description
BL-Sky LED 6060 4000lm Type 03 Cloudy 6 Panel
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description
BL-Sky LED 6060 4000lm Type 03 Cloudy 6 Panel
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description
BL-Sky LED 6060 4000lm Type 09 Sunlight 6 Panel
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description
BL-Sky LED 6060 4000lm Type 09 Sunlight 6 Panel DALI
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description
BL-Sky LED 6060 4000lm Type 116 Blossom 6 Panel
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description
BL-Sky LED 6060 4000lm Type 20 Tree-light 9 Panel
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description

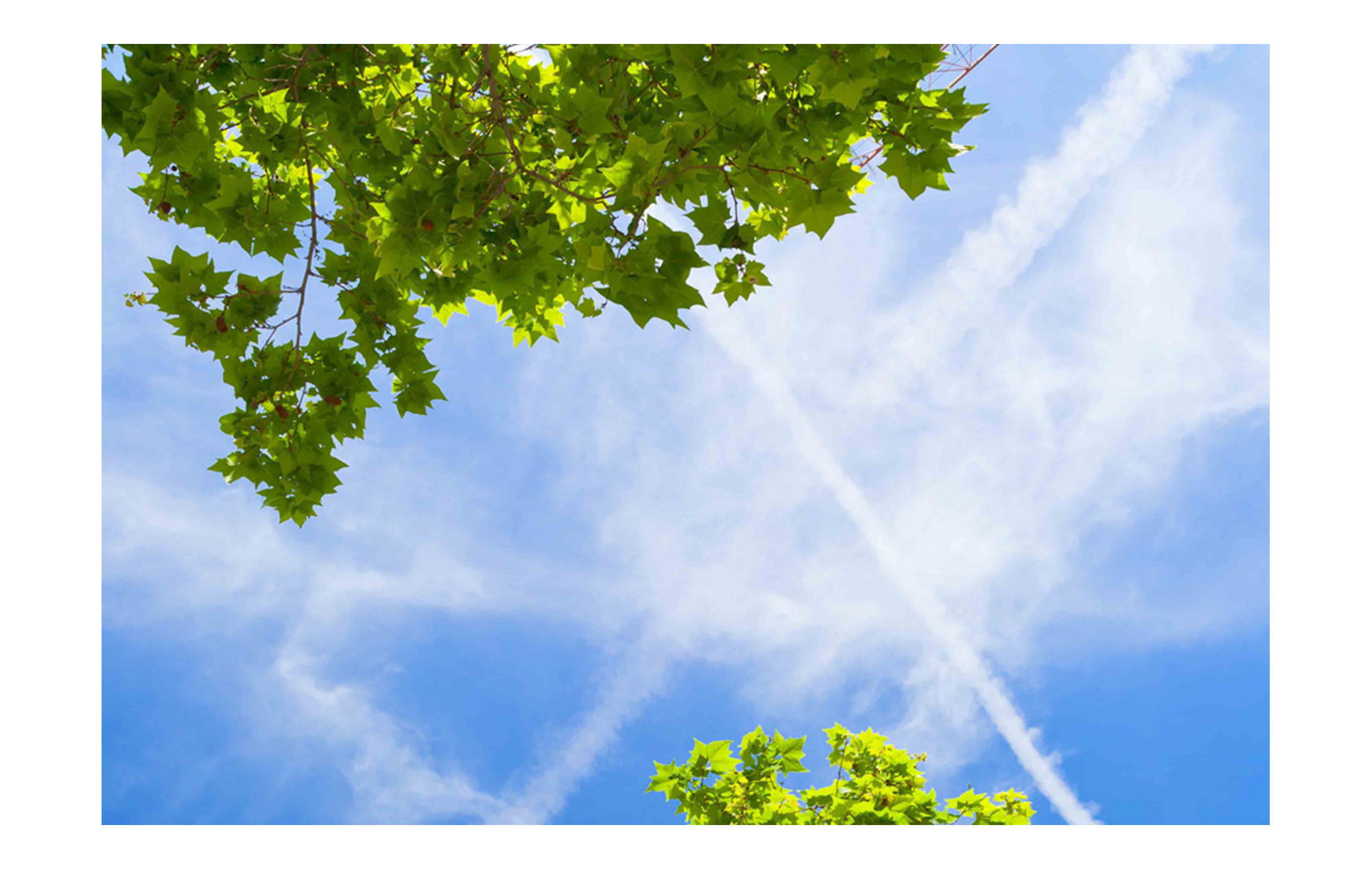

BL-Sky LED 6060 4000lm Type 21 Tree-light 6 Panel
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
Description
BL-Sky LED 6060 4000lm Type 21 Tree-light 6 Panel DALI
lm
4100
W
32.000
lm/W
128
K
4000.000|4000.000
L
595.000
B
595.000
H
90.000
| Article | Description | lm | W | lm/W | K | L | B | H | |
| 8717696138352 | BL-Sky LED 6060 3000lm Type 01 Cloudy 6 Panel | 3100 | 23.000 | 134 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 3000lm Type 01 Cloudy 6 Panel lm 3100 W 23.000 lm/W 134 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696133166 | BL-Sky LED 6060 4000lm Type 01 Cloudy 6 Panel | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 01 Cloudy 6 Panel lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696137997 | BL-Sky LED 6060 4000lm Type 01 Cloudy 6 Panel DALI | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 01 Cloudy 6 Panel DALI lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696137669 | BL-Sky LED 6060 4000lm Type 02 Sunlight 6 Panel DALI | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 02 Sunlight 6 Panel DALI lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696131049 | BL-Sky LED 6060 4000lm Type 03 Cloudy 6 Panel | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 03 Cloudy 6 Panel lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696186780 | BL-Sky LED 6060 4000lm Type 03 Cloudy 6 Panel | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 03 Cloudy 6 Panel lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696130394 | BL-Sky LED 6060 4000lm Type 09 Sunlight 6 Panel | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 09 Sunlight 6 Panel lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696131674 | BL-Sky LED 6060 4000lm Type 09 Sunlight 6 Panel DALI | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 09 Sunlight 6 Panel DALI lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696173087 | BL-Sky LED 6060 4000lm Type 116 Blossom 6 Panel | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 116 Blossom 6 Panel lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696177030 | BL-Sky LED 6060 4000lm Type 20 Tree-light 9 Panel | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 20 Tree-light 9 Panel lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696127318 | BL-Sky LED 6060 4000lm Type 21 Tree-light 6 Panel | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 21 Tree-light 6 Panel lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
| 8717696139199 | BL-Sky LED 6060 4000lm Type 21 Tree-light 6 Panel DALI | 4100 | 32.000 | 128 | 4000.000|4000.000 | 595.000 | 595.000 | 90.000 | |
Description BL-Sky LED 6060 4000lm Type 21 Tree-light 6 Panel DALI lm 4100 W 32.000 lm/W 128 K 4000.000|4000.000 L 595.000 B 595.000 H 90.000 | |||||||||
