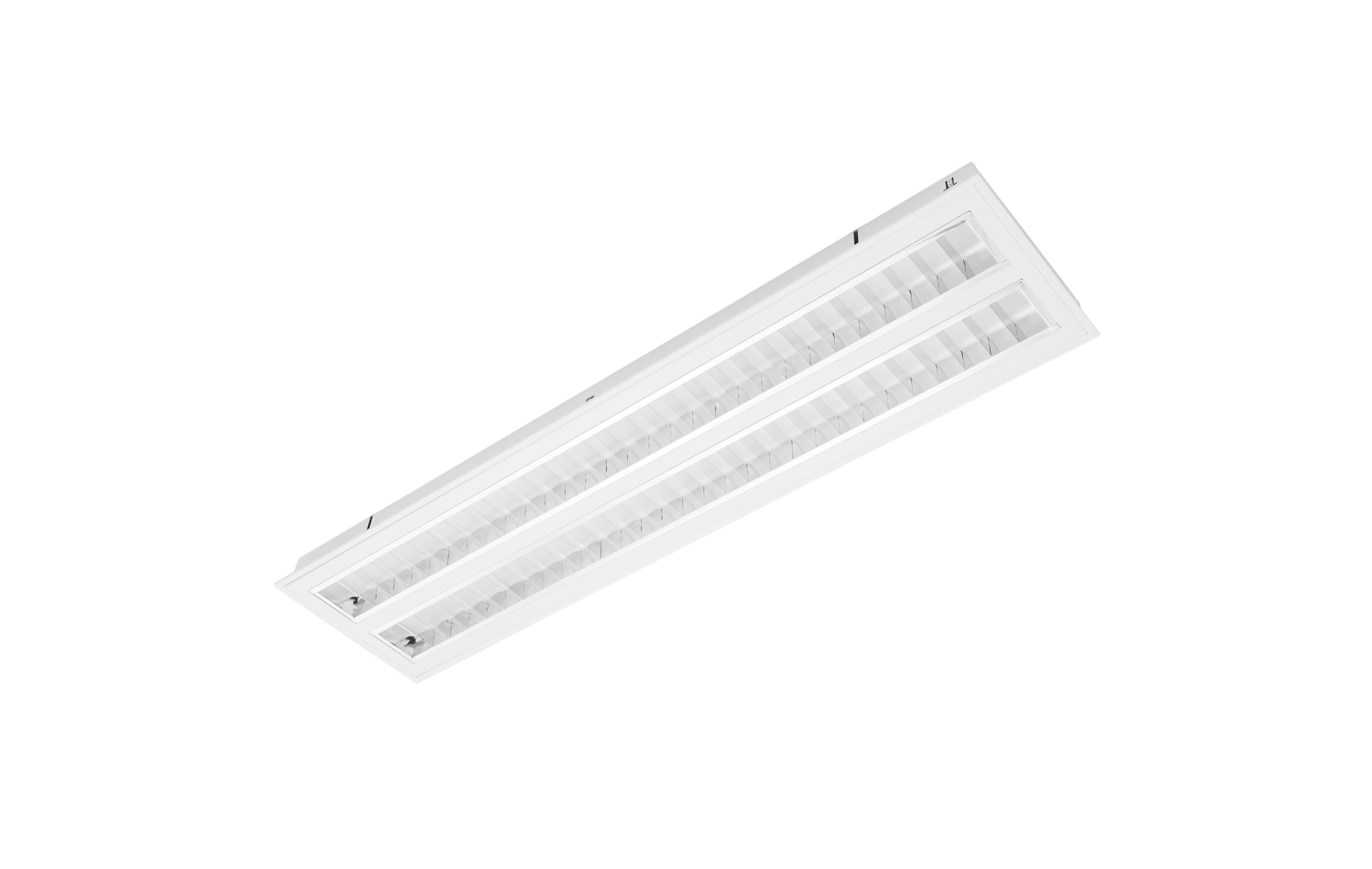

LED906 Bandraster
Installation:
Installed in suspended system ceilings with exposed profiles module size 600mm or drywall ceilings.
Design:
Matte white RAL9016 powder coated sheet steel housing. The linear LED modules and driver are mounted inside the housing.
Optical:
Matt parabolic anodized reflector with white decorative profiles in an aluminum frame.
LED Type SMD
- 5700K
- Casambi
- CRI90
- Daylight sensor
- Dimmable 1-10V
- Dimmable DALI
- High gloss louver
- Mounting brackets
- Emergency lighting package
- Project foil
- Tunable White
IP20
UGR <21
126 lm/w
L80B50 80h
GST18/3
Description
LED906-MAT-DP 148x1495 1LS 3200 830 ND GST18/3
lm
3200
W
29.000
lm/W
110
K
4000.000|4000.000
L
1495.000
B
148.000
H
ZL
1475.000
ZB
128.000
ID
| Article | Description | lm | W | lm/W | K | L | B | ZL | ZB | |
| 8717696197861 | LED906-MAT-DP 148x1495 1LS 3200 830 ND GST18/3 | 3200 | 29.000 | 110 | 4000.000|4000.000 | 1495.000 | 148.000 | 1475.000 | 128.000 | |
Description LED906-MAT-DP 148x1495 1LS 3200 830 ND GST18/3 lm 3200 W 29.000 lm/W 110 K 4000.000|4000.000 L 1495.000 B 148.000 ZL 1475.000 ZB 128.000 | ||||||||||
