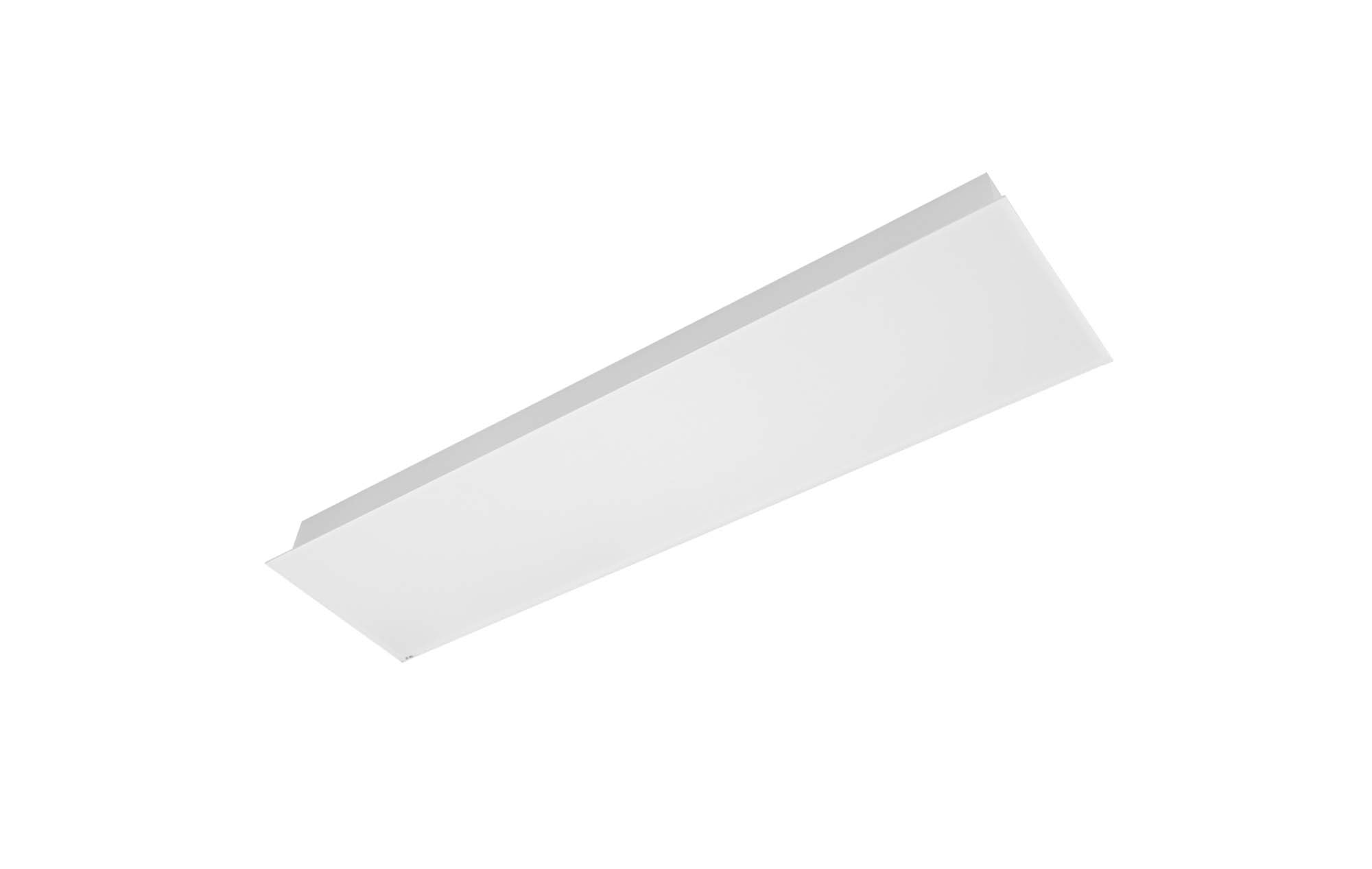

BL906-O3 3112
Installation:
Installed in suspended system ceilings with exposed profiles module size 600mm or drywall ceilings.
Design:
Matte white RAL9016 powder-coated sheet steel housing.
Optical:
The opal PMMA shield guarantees uniform shadow-free illumination from the luminaire.
LED type: SMD
- 2700k/ 5700k/ 6500k
- CRI90
- Dimmable 1-10V
- Dimmable DALI
- Mounting frame 6060
- Micro Prism UGR <19
- Emergency lighting package
IP54
UGR <21
135 lm/w
L80B50 80h
GST18/3
HACCP
Description
BL906-O3 3112 4000 830 ND IP54
lm
3900
W
32.000
lm/W
122
K
3000.000|3000.000
L
1246.000
B
295.000
H
90.000
Description
BL906-O3 3112 4000 830 ND IP54 GST18/3
lm
3900
W
32.000
lm/W
122
K
3000.000|3000.000
L
1246.000
B
295.000
H
90.000
Description
BL906-O3 3112 4000 840 ND IP54
lm
3900
W
32.000
lm/W
122
K
4000.000|4000.000
L
1246.000
B
295.000
H
90.000
| Article | Description | lm | W | lm/W | K | L | B | H | |
| 8717696174770 | BL906-O3 3112 4000 830 ND IP54 | 3900 | 32.000 | 122 | 3000.000|3000.000 | 1246.000 | 295.000 | 90.000 | |
Description BL906-O3 3112 4000 830 ND IP54 lm 3900 W 32.000 lm/W 122 K 3000.000|3000.000 L 1246.000 B 295.000 H 90.000 | |||||||||
| 8717696136969 | BL906-O3 3112 4000 830 ND IP54 GST18/3 | 3900 | 32.000 | 122 | 3000.000|3000.000 | 1246.000 | 295.000 | 90.000 | |
Description BL906-O3 3112 4000 830 ND IP54 GST18/3 lm 3900 W 32.000 lm/W 122 K 3000.000|3000.000 L 1246.000 B 295.000 H 90.000 | |||||||||
| 8717696174787 | BL906-O3 3112 4000 840 ND IP54 | 3900 | 32.000 | 122 | 4000.000|4000.000 | 1246.000 | 295.000 | 90.000 | |
Description BL906-O3 3112 4000 840 ND IP54 lm 3900 W 32.000 lm/W 122 K 4000.000|4000.000 L 1246.000 B 295.000 H 90.000 | |||||||||
