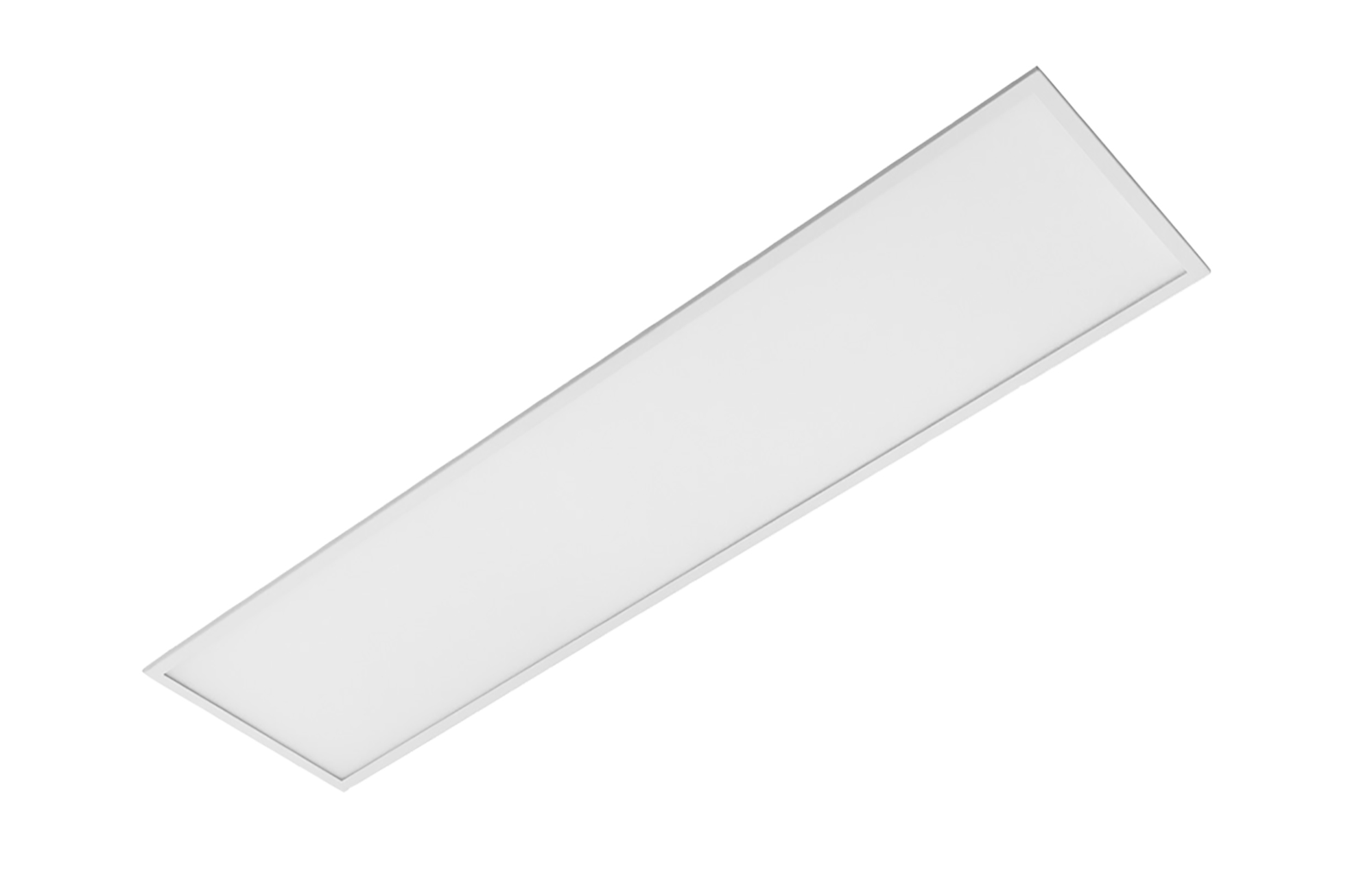

QS-3112
Installation:
Installed in suspended system ceilings with visible profiles module size 600mm or plasterboard ceilings by means of a recessed frame.
Design:
Matte white RAL9016 powder-coated sheet steel housing.
Optical:
The highly transparent acrylic shield with a microprismatic layer guarantees uniform shadow-free illumination from the luminaire.
LED type: SMD
- 2700k/ 5700k/ 6500k
- Casambi
- CRI90
- Dimmable 1-10V
- Dimmable DALI
- Mounting frame 6060
- Emergency lighting package
- Mounting frame 6060
IP20
UGR <19
113 lm/w
L80B50 50.000h
GST18/3
Description
QS-LED 3112 4000 830 UGR<19 ND
lm
3900
W
36.000
lm/W
108
K
3000.000|3000.000
L
B
H
1.000
| Article | Description | lm | W | lm/W | K | H | |
| 8717696174817 | QS-LED 3112 4000 830 UGR<19 ND | 3900 | 36.000 | 108 | 3000.000|3000.000 | 1.000 | |
